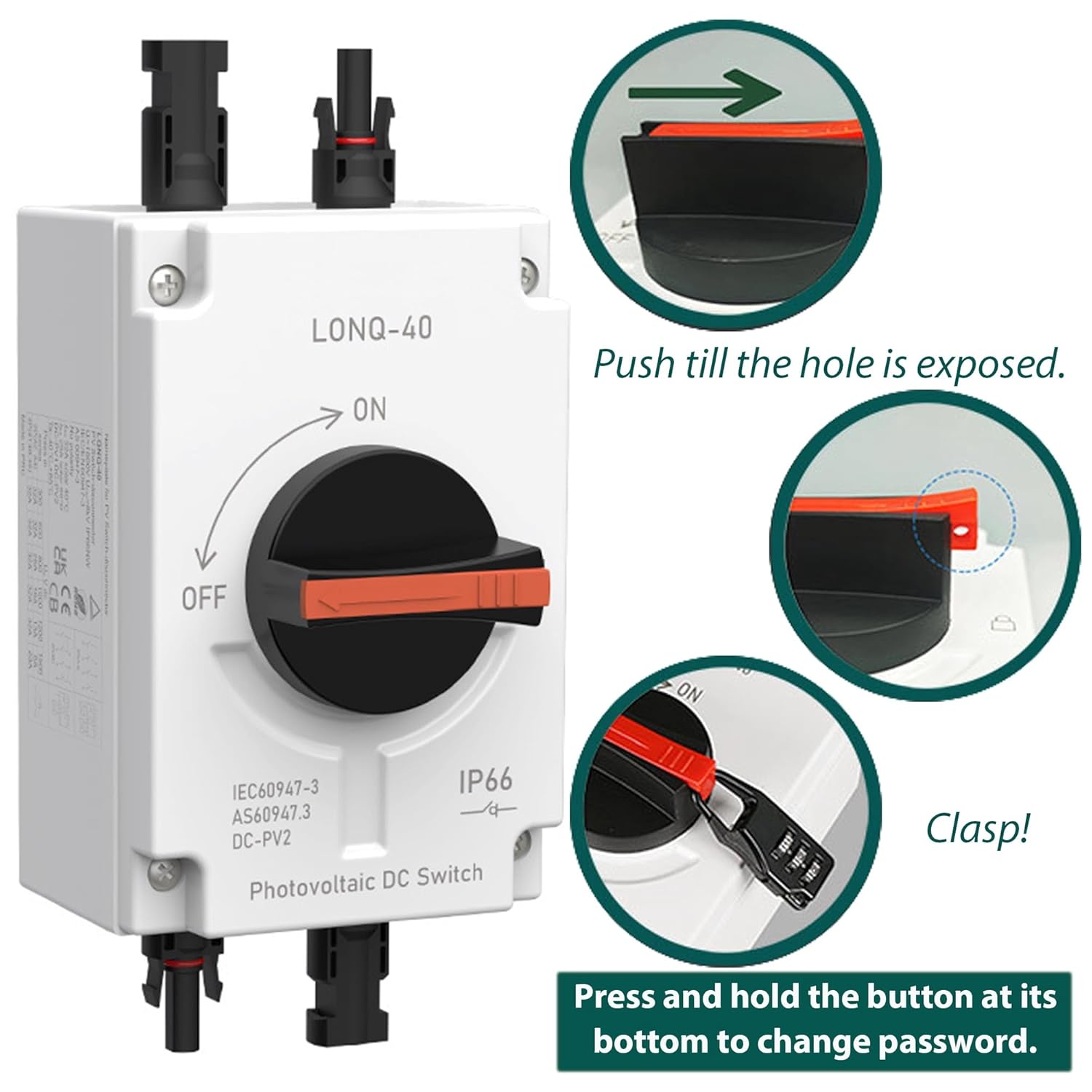

Solar Disconnect Switch, 32A 1200V Solar PV DC Isolator Switch, 1 in 1 Out, IP66 Waterproof UV Protected for Outdoor RV Marine Home, MC4 Connectors

Solar Disconnect Switch, 32A 1200V Solar PV DC Isolator Switch, 1 In 1 Out, IP66 WaterproofUV Protected for Outdoor RV Marine Home, MC4 ConnectorsSafety Guard: Isolator disconnect switch allows you to manually disconnect from the modules in the solar photovoltaic system, and cut off the arc generated by the DC power to avoid dangerous accidents, IEC60947-3 compliant, great for both home and commercial settingsDC1200V: PV DC isolator switch provides a rated voltage DC 300-1200V and rated current 6-32A, ideal for caravan solar systems, boats and stand-alone solar power systems, to be installed between solar panels ↔ solar charge controllers, solar panels ↔ inverters, solar panels ↔ solar panelsWeatherproof: Solar disconnect switch boasts IP66 waterproof, UL 746C UV protected, and flame-retardant housing, suitable for use in all weather conditions -40℃~+85℃, 24-hour continuous ≤ 40℃Circuit Breaker: Solar disconnect switch comes pre-wired for a safe and quick installation, capable of breaking isolating a load even when its circuit current is 8 times of the insulator, helping protect electrical system from damage due to over-current situationsMC4 Connectors: The male MC4 connector is designated as the negative (-) terminal, while the female MC4 connector is the positive (+) terminalSPECIFICATIONModel: LONQ-40Rated Voltage: DC 1200VApplicable Current: 6-32AProtection Rating: IP66Working Temperature: -40℃~+85℃Dimensions: 4.1*4.3*6.2in / 104*110*157 mmWeight: 1.7lb / 750gPACKAGE1 x Solar Disconnect Switch1 x Password Padlock4 x MC4 Connector1 x MC4 Wrench4 x Set of Mounting Screw

• Safety Guard: Isolator disconnect switch allows you to manually disconnect from the modules in the solar photovoltaic system, and cut off the arc generated by the DC power to avoid dangerous accidents, IEC60947-3 compliant, great for both home and commercial settings
• DC1200V: PV DC isolator switch provides a rated voltage DC 300-1200V and rated current 6-32A, ideal for caravan solar systems, boats and stand-alone solar power systems, to be installed between solar panels ↔ solar charge controllers, solar panels ↔ inverters, solar panels ↔ solar panels
• Weatherproof: Solar disconnect switch boasts IP66 waterproof, UL 746C UV protected, and flame-retardant housing, suitable for use in all weather conditions -40℃~+85℃, 24-hour continuous ≤ 40℃
• Circuit Breaker: Solar disconnect switch comes pre-wired for a safe and quick installation, capable of breaking isolating a load even when its circuit current is 8 times of the insulator, helping protect electrical system from damage due to over-current situations
• MC4 Connectors: The male MC4 connector is designated as the negative (-) terminal, while the female MC4 connector is the positive (+) terminal
